Welcome to the Blink developer community. You'll find comprehensive guides and documentation to help you start working with Blink as quickly as possible, as well as support if you get stuck. Let's jump right in!

Get Started

Building Authenticated Integrations

If you want to build an integration that allows the users to authenticate with an external system and perform actions in that system via your integration, you can create an Authenticated Integration. Users will be able to authenticate with the external system via your integration directly from Blink.

To work properly, your integration must provide two publicly accessible endpoints that Blink can call:

URI

Description

POST /auth/<auth_id>

Called when a user wants to connect their account in your external service to Blink. Find out more.

DELETE /linked-accounts/<linked_account_id>

Called when a user wants to disconnect their account in your external service from Blink. Find out more.

The Authentication Process

This section describes how your integration should implement the POST /auth/<auth_id> endpoint

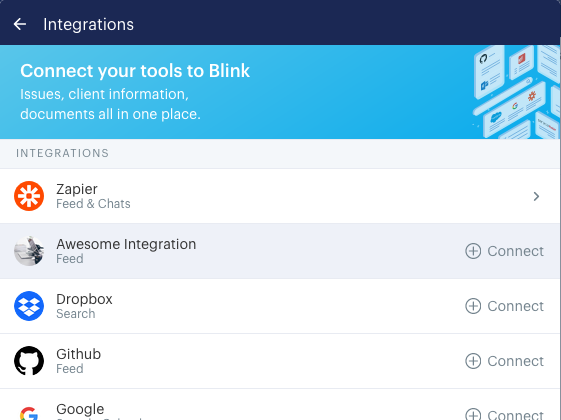

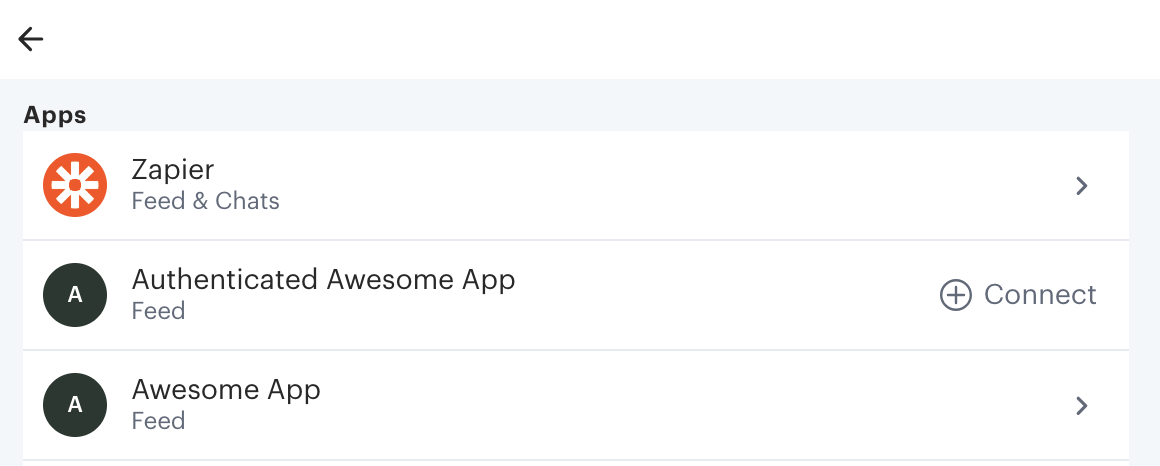

The user opens the manage integrations page and clicks your integration.

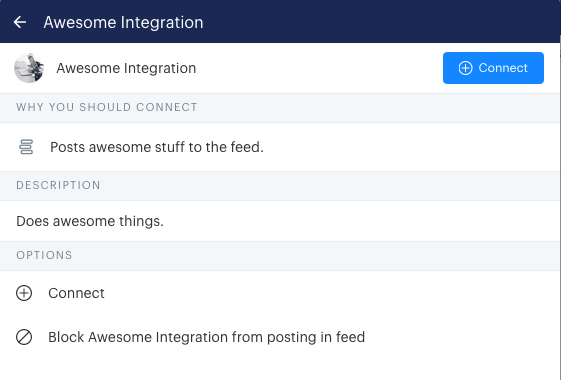

The user clicks the blue connect button.

This click triggers an HTTP request that Blink proxys to the proxy url you have specified for your integration. Your integration code therefore needs a handler for POST /auth/<auth_id> where auth_id is the Auth ID shown on the management page for your integration in the Blink Admin panel. The request will come through with all headers described in the Proxy Endpoint documentation.

Your integration code should construct an authorization URL to return to Blink. Blink will open this URL in a new window. This URL should be some page where a user can authenticate with the external service so that your integration can capture their credentials.

Your integration's POST /auth/<auth_id> endpoint should then return the Authorization URL to Blink in the following JSON object.

{
   "code":"OK",
   "message":"OK",
   "data":{
      "authorization_url":"https://your-external-service.site/login"
   }
}

Blink will open this URL in a new window so that the user can authenticate with the external service.

Your code for handling this authentication should save a Linked Account for the user with the Add User Linked Account endpoint.

Linked accounts contain a number of fields, the only one that MUST be saved for each linked account is external_account_id. This should be some unique identifier for the user's account in the external system the user can use to identify the account on the integrations management page.

How the page for a user's account is displayed in the integrations microapp. The external_account_id for this account is the text 'john.doe' at the top of the page.

Removing Accounts

This section describes how your integration should implement the DELETE /linked-accounts/<linked_account_id> endpoint

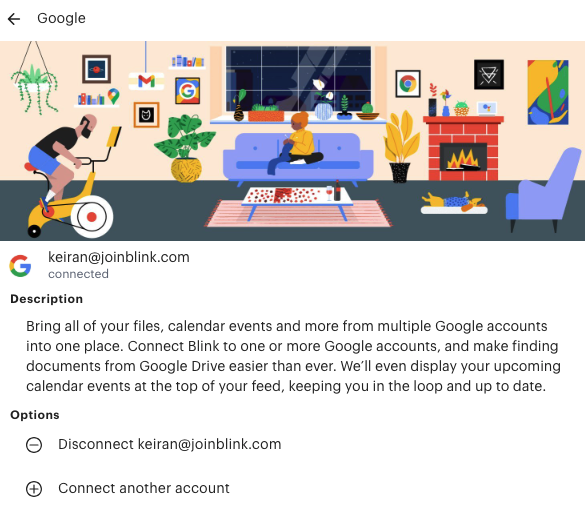

When a user wishes to disconnect their account in your external service from Blink they click the Disconnect button on the account page in the integrations management panel:

When this button is pressed, Blink proxys a call to DELETE /linked-accounts/<linked_account_id> to the proxy_url for your integration.

When receiving a call to this endpoint, your integration should delete the linked account from Blink by calling the Delete User Linked Account endpoint. Your integration can then perform any arbitrary actions to deauthenticate the user from the service, e.g revoking tokens.

Updated about a year ago
